CT73H
FEATURES
● Up to 15A contact switching capability
高达15A触点切换能力
● 1 Form A and 1 Form C configurations
具有一组常开、一组转换触点形式
● Sockets available
配有多种插座可供选择
● Overall dimensions (19.6X15.4X15.5)mm
外形尺寸(19.0X15.4X15.5)mm
details -
CT22F
FEATURES
●16A contact switching capability
16A触点切换能力
●Plastic sealed and dust protected types available
塑封型和防尘罩型可供选择
●Overall dimensions (20.3X16.6X20.6)mm
外形尺寸(20.3X16.6X20.6)mm
details -
CT76
FEATURES
● Up to 16A contact switching capability
高达16A触点切换能力
● Plastic sealed and flux proofed types available
塑封型与防焊剂型可供选择
● Low height,flat construction
低高度、扁平式结构
● Overall dimensions(23.0X16.0X10.5)mm
外形尺寸(23.0X16.0X10.5)mm
details -
CT32F
FEATURES
● 10A contact switching capability
高达10A触点切换能力
● Plastic sealed and flux proofed types
塑封型与防焊剂型可供选择
● 2.5kV dielectris strength(between coil and contacts)
线圈与触点间介质耐压2.5kV
● Overall dimensions (18.4X10.2X15.5)mm
外形尺寸(18.4X10.2X15.5)mm
details -
CT90
FEATURES
● Up to 40A contact seitching capability
高达40A触点切换能力
● 2.5kV dielectris strength(between coil and contacts)
线圈与触点间介质耐压2.5kV
● sealed types and opened types
可提供密封型或敞开型
● Overall dimensions (30.5X27.4X19.8)mm
外形尺寸(30.5X27.4X19.8)mm
details -
CT91
FEATURES
●High contact capacity,up to 30A/250VAC
尺寸(低外壳):31.8×27.4×19.8(mm)
尺寸(高外壳):31.8×27.4×27.7(mm)
●30A contact seitching capability
30A触点切换能力
●2.5kV dielectris strength(between coi and contacts)
触点与线圈介质耐压2.5KV
● Exposed or concealed quick connect terminals
印制板式和快连接式
details -
CT93
FEATURES
●Up to 30A contact seitching capability
高达30A触点切换能力
●2.5kV dielectris strength(between coil and contacts)
线圈与触点间介质耐压2.5kV
●Sealed types and opened types
可提供密封型或敝开型
●Overall dimensions (31.8x27.4x19.8)mm
外形尺寸(31.8x27.4x19.8)mm
details -
CT368 BIG T90
FEATURES
●Large contact load
触点负载高
●Strong shock resistance and Damping、High reliability、Long life
抗冲击,减震能力强,可靠性高,寿命长
●Applicable to Automotive, mechanical, electronic equipment and household appliance applications, as well as PCB installation
适用于汽车、机械、电子设备、智能家居应用，以及PCB安装
details -

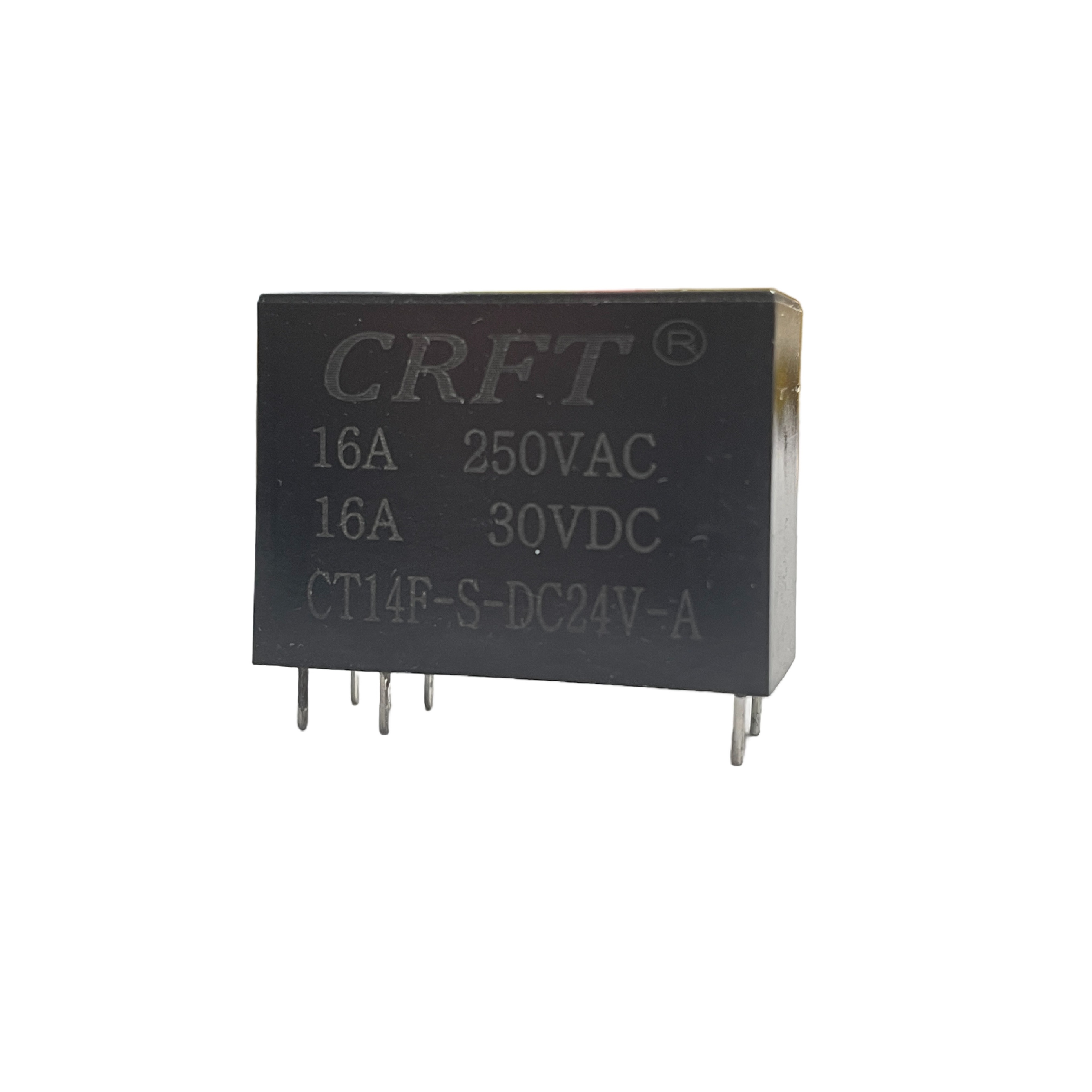

CT14F
FEATURES
●16A contact seitching capability
16A触点切换能力
● One set of regular,conversion,two groups of regular,conversion
一组常开、转换，二组常开、转换
● Plastic sealed and dust protected types available
塑封型和防尘罩型可供选择
●Overall dimensions (29.2X12.8X20.6)mm.
外形尺寸(29.2X12.8X20.6)mm
details -

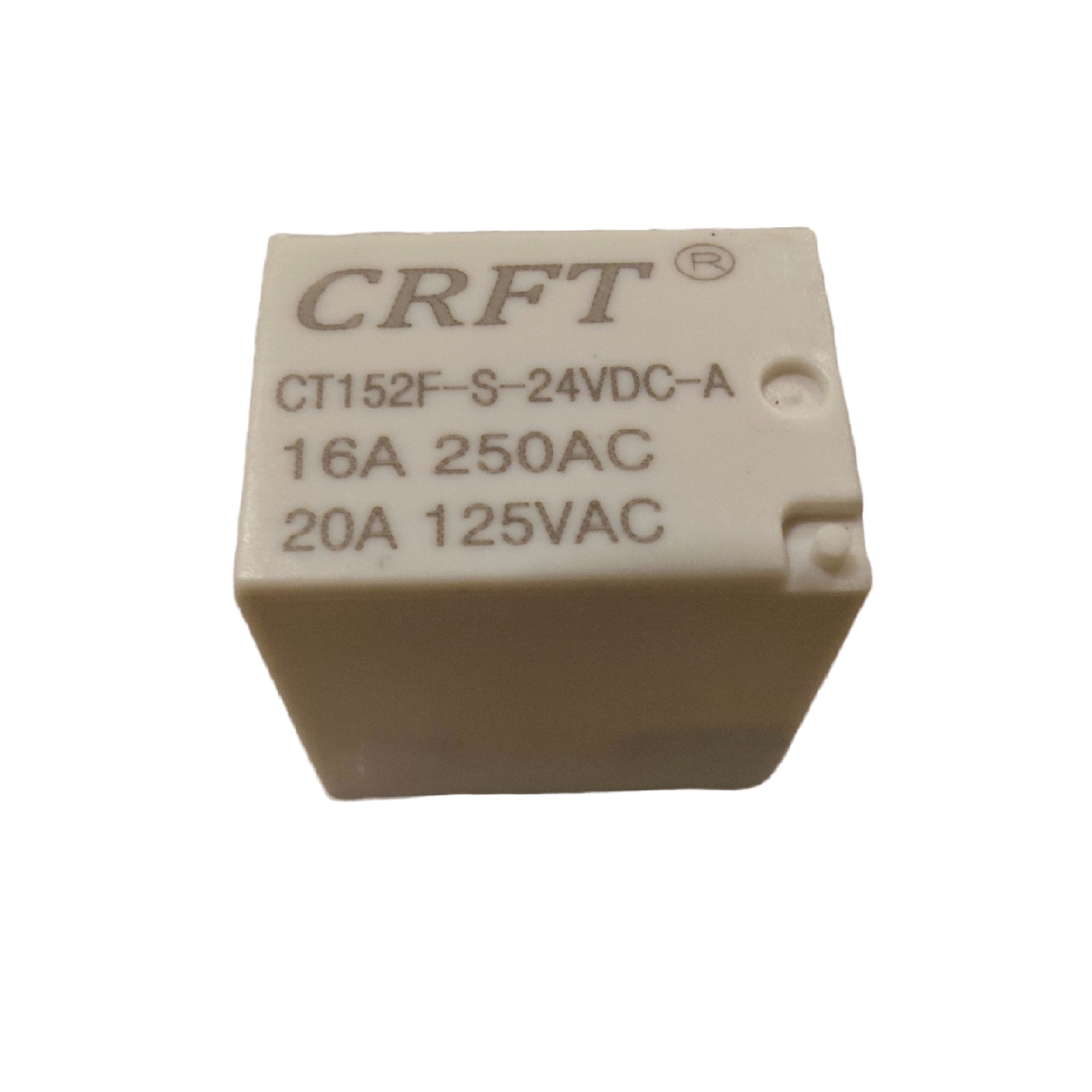

CT152F
FEATURES
●20A contact seitching capability
20A触点切换能力
●Plastic sealed and dust protected types available
塑封型和防尘罩型可供选择
●Overall dimensions (21.0X16.0X20.6)mm
外形尺寸(21.0X16.0X20.6)mm
details
